RL3 Circle switch series

RL3-5-4

RL3-5翘板开关系列
品质优良的翘板开关开关

长寿命、高可靠, 接线端子种类齐全。

多种开关功能, 多种开关颜色及印字

多种温度等级, 区分高电流及低电流

各国安规认证齐全UL、cUL、ENEC、CQC等并符合ROHS

广泛应用于各种家用电器、电子设备、自动化设备、通讯设备、汽车电子、仪器仪表、电动工具等领域。

Performance
Design
Related
Model

Model:

Your content will be displayed in this selection

Click the link below the corresponding operation:
Get Sample
Get Quote
Get design drawings
Online booking

No Image
产品名称
RL3-4(R)

RL3-5

RL3-5(X)

RL3-5(P)

RL3-5(X)P

RL3-6

View Image

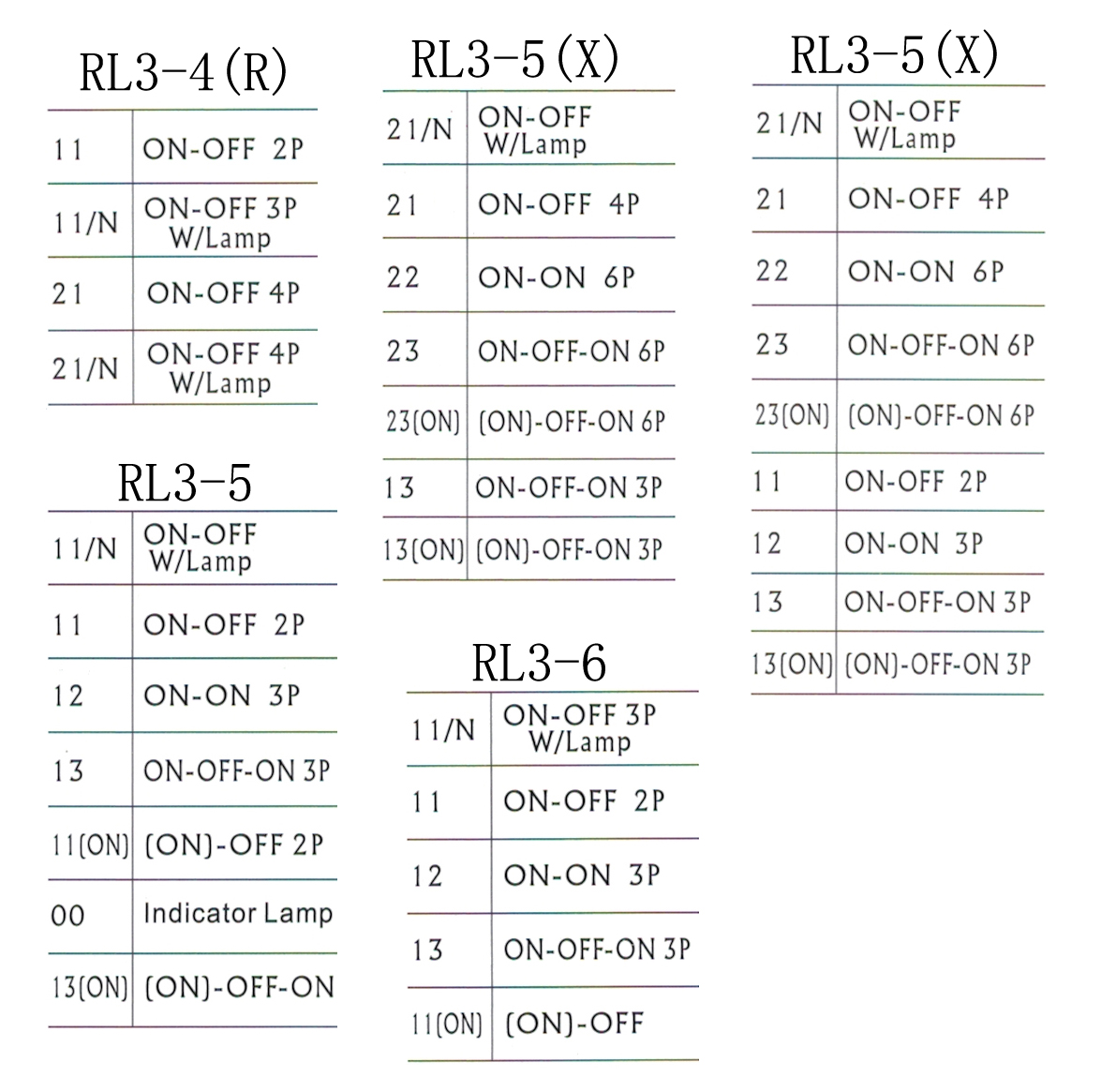

产品功能
11/N
ON-OFF 3P W/Lamp

11
ON-OFF 2P

12
ON-ON 3P

13
ON-OFF-ON 3P

11(ON)
(ON)-OFF

00
Indicator Lamp

13(ON)
(ON)-OFF-ON

21
ON-OFF 4P

21/N
ON-OFF 4P W/Lamp

22
ON-ON 6P

23
ON-OFF-ON 6P

23(ON)
(ON)-OFF-ON 6P

13(ON)
(ON)-OFF-ON 3P

View Image
额定值
G
10A 125VAC 6A 250VAC

H
16A 125VAC 10A 250VAC

View Image

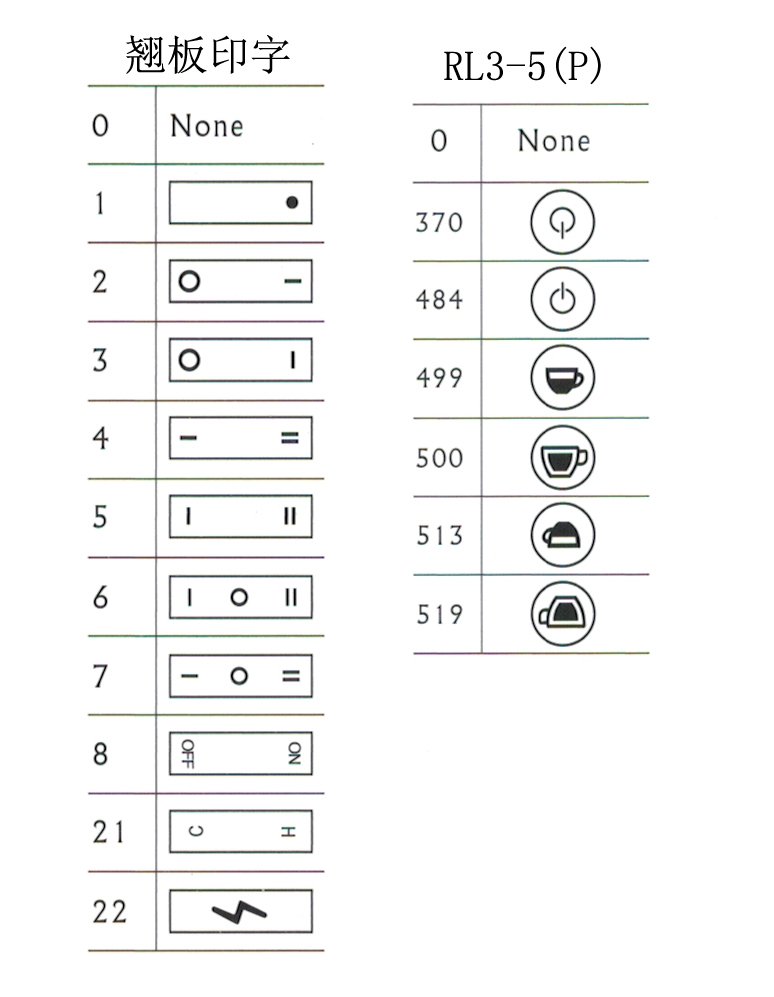

翘板印字
0
None

2
o -

3
o |

4
- =

5
| ||

6
| o ||

7
- o =

8
off on

21
c H

View Image
翘板颜色
BK
Black

WT
White

RE
Red

OR
Orange

GR
Green

GE
Grey

View Image
本体颜色
KB
Black

WT
White

RE
Red

OR
Orange

GR
Green

GE
Grey

View Image

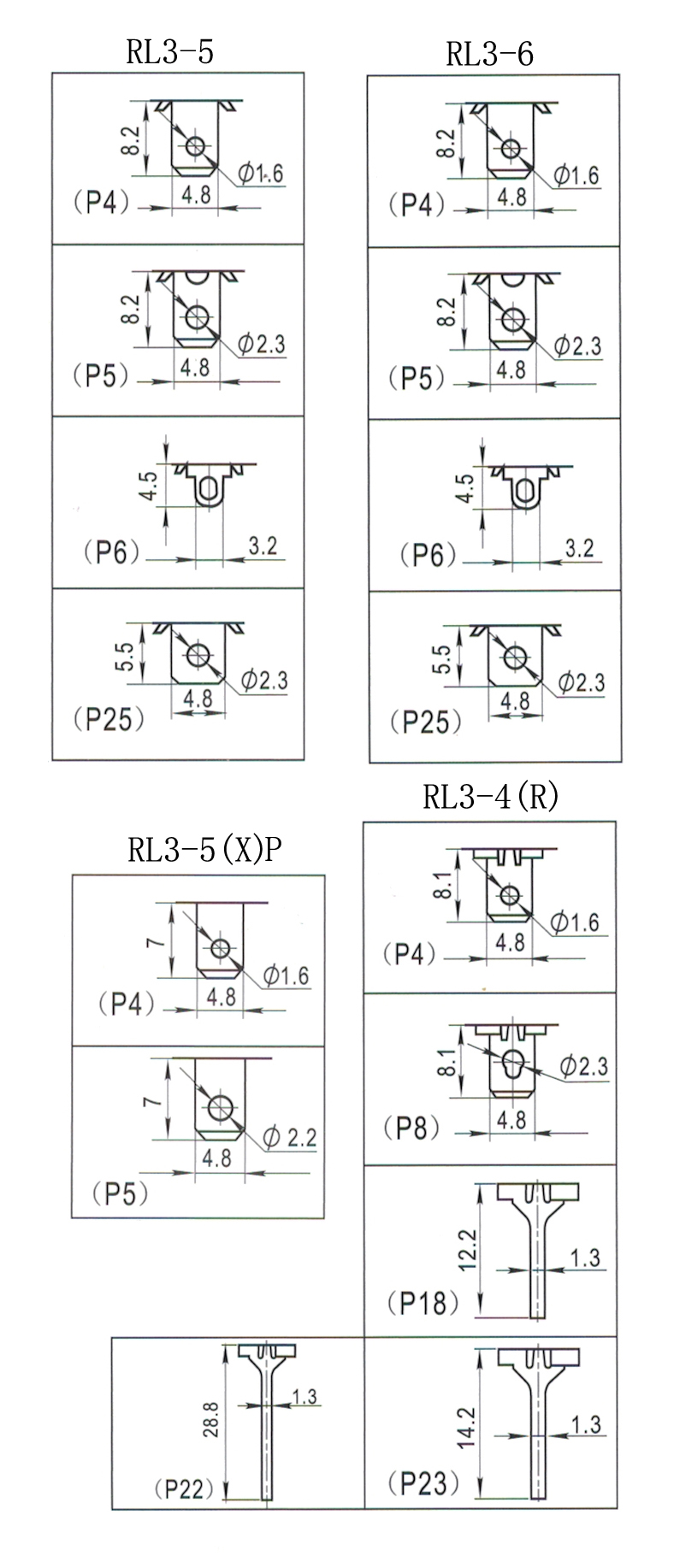

端子脚
P4
4.8快接端子孔1.6

P5
4.8快接端子孔2.2

P6
焊线端子脚

P8
4.8快接端子孔2.3

P18
PCB端子长12.2

P23
PCB端子长14.2

P22
PCB端子长28.8

P25
4.8焊接端子孔2.3

View Image

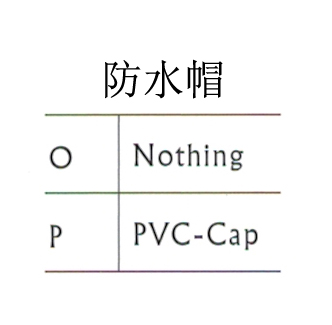

防水帽
0
Nothing

P
PVC-Cap

View Image

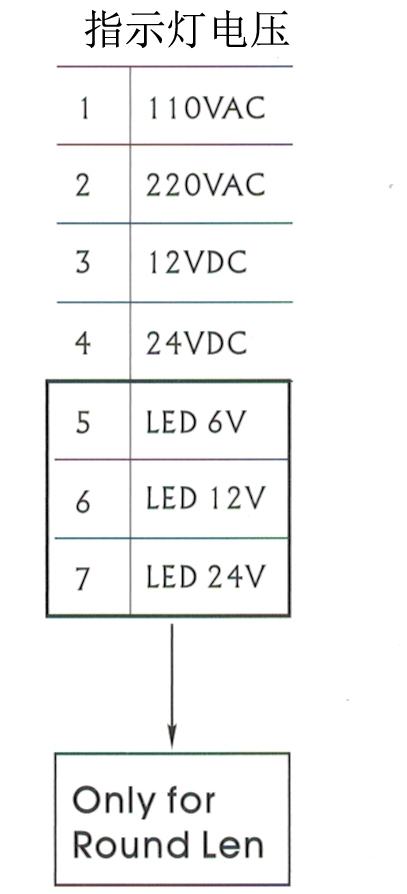

指示灯电压
1
110VAC

2
220VAC

3
12VDC

4
24VDC

5
LED6V

6
LED12V

7
LED24V
